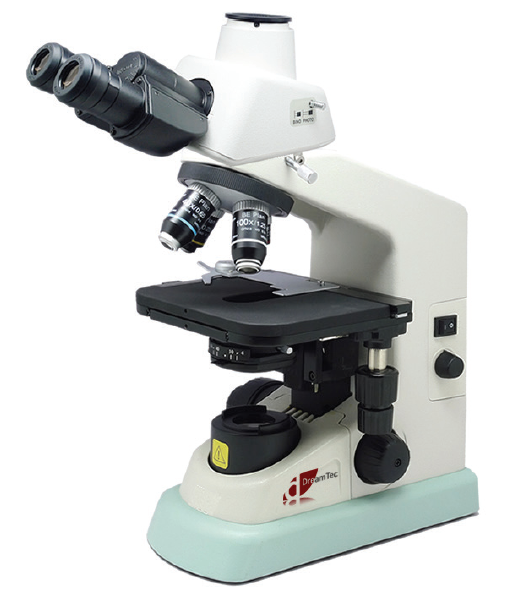

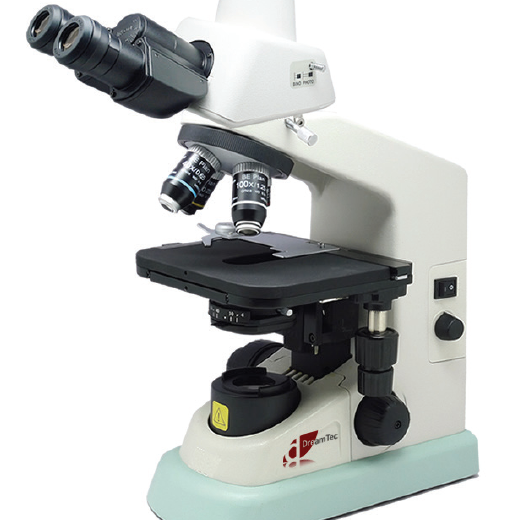

Optical System CFI Optical System
Head E2-TB Brinocular Viewing Head,
Inclined at 30°, Interpupillary 47-75mm
Eyepiece E1-CFI W10×/18
Objective CFI BE Plan Achromatic Objective 4x ,10x ,
40x , 100x
Nosepiece Frontward Quadruple Nosepiece
Focusing Coaxial Coarse and Fine Adjustment, Fine
Division 0.002mm, Coarse Stroke 37.7mm per
Rotation, Fine Stroke 0.2mm per Rotation,
Moving Range 22mm
Stage Double Layers Mechanical Stage 155*134mm
Condenser Abbe Condenser NA1.25 can hold 33mm filter
Illumination 6V/20W Halogen Lamp
