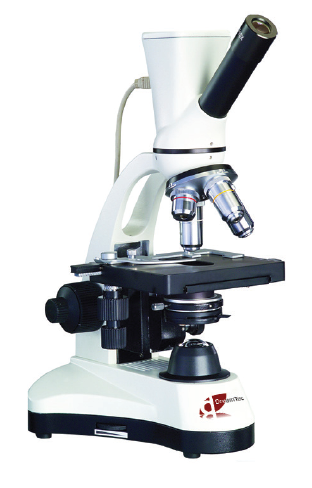

Specfication
Digital Head
CMOS 1/2”, resolution 300K, USB 1.1, Auto White
Balance
Monocular,360° rotatable (Inclination of 45°)
CMOS 1/2”, resolution 1.3M, USB 2.0, Auto White
Balance
Monocular,360° rotatable (Inclination of 45°)
Eyepiece
WF10X plan eyepiece, focal length 25mm, field
Φ18mm
Huygens 15X(Φ11mm)
Objective
Parfocalization distance 35mm
Achromatic 4X/0.10
Achromatic 10X/0.25
Achromatic 40X/0.65(Spring)
Achromatic 100X/1.25(Spring, oil)
Nosepiece
Triple nosepiece (Frontward ball bearing outer
locating)
Quadruple nosepiece (Frontward ball bearing outer locating)
Focus System
Coaxial coarse/fine focus system. Minimum
division of fine focusing: 4μm.
Stage Fixed(Size:120mmX120mm, With five holes fixediris diaphragm)
Double layer mechanical, size 135x125mm, moving range 75x35mm
Collector For LED lamp light source
High brightness white LED lamp
Software with image analysis software in English version
