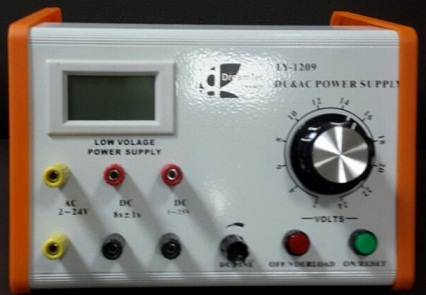

Stable DC output 1V-25V/6A,4A,2A,with ammeter; AC output 2V-24V/12A,6A,3A, short current is 40A DC timed output limit. All the outputs are overload-protection.

1. AC output
   Nominal voltage: total is twelve grades, 2-24V, each grade is 2V.
   Rated current: 2-6V grade is 12A, 8-12V grade is 6A, 14-24 grade is 3A.
   Unload voltage: power supply voltage is 220V..
   Full-load voltage: power supply voltage is 220V, and output current is 5A..
   2. DC stabilized output
   Nominal voltage: 1-25V can be continuous adjustable. Adjust 2-24V finely. Each grade is 2V and can adjust 1V finely.
   Rated current: 2-6V grade is 8A, 8-12V grade is 4A, 14-24V grade is 2A.
   Voltage modulation: (2% +0.1V).
   Voltage stability: 2% +0.1V.
   Load stability: 2% +0.1V.
   Ripple coefficient: 1%.
   Precision of voltmeter: 2.5grade.
   3. Overload protection:
   The power supply will stop automatically when the output current is 1.05-1.5times of rated current. Meantime, it can start the filament lamp is not more than rated current.
   4. Short-term output of DC current
   Output current: 40 10A (short-term)
   Timer time: 81S, it will close automatically.
   Power supply input: AC220V  50HZ
