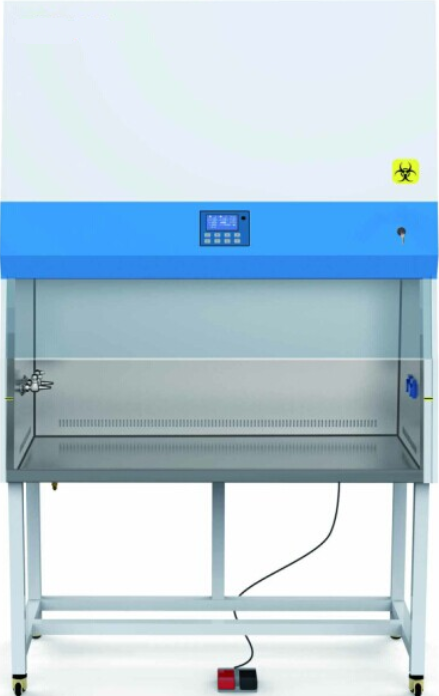

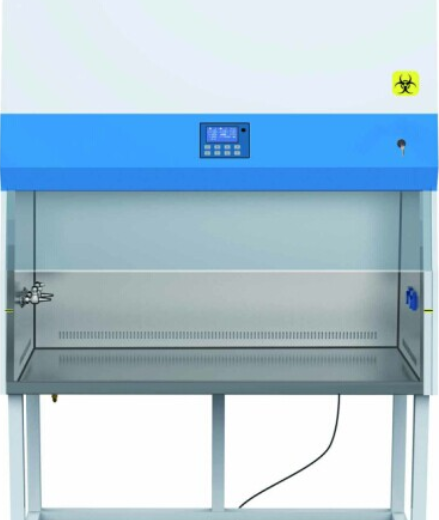

BIOLOGICAL SAFETY CABINET, DT-1300IIA2-X

Advantage:

1. Motorized Front Window.

2. Time Reserve Function.

3. HEPA Filter life and UV Life indicator.

4. Automatic air speed adjustable with filter block.

5. Work area surrounded by negative pressure, it can ensure maximum safety in work area.

6. Audio and visual alarm (Filter replacement, Window over height, abnormal Air flow velocity etc).

7. Most accessories are standard. No need to pay more, save your money.

8. Remote Control. All functions can be realized with it, making the operation much easier and more convenient.

9. Foot Switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm    movement.

10. Interlock Function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.

Product Code: DT-1300IIA2-X. Category: .

  • Description

    Features:







    LCD Display

    Large digital display is easy to monitor all the safety parameters at a glance and ergonomically

    sized control panel improves user interface.



    Work Zone

    Work zone, made of 304 stainless steel, is surrounded by negative pressure.



    Remote Control

    All functions can be realized with it, making the operation much easier and more convenient.



    UV lamp

    Emission of 253.7 nanometers for most efficient decontamination.



    Front Window

    Two-layer laminated toughened glass>5mm, anti UV



    Footmaster caster

    Universal caster with brake and leveling feet.

    Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm

    movement.



    Foot Switch

    Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm

    movement.





    Specification:

    Model DT-1100IIA2-X DT-1300IIA2-X DT-1500IIA2-X DT-1800IIA2-X DT-2000IIA2-X
    Internal Size

    (W*D*H)

    		 940* 600*660 mm 1100*600*660 mm 1350*600*650mm 1710*600*660 mm 1800*600*660mm
    External Size

    (W*D*H)

    		 1100*750*2250mm 1300*850*2200mm 1500*840*2280mm 1870*750*2290mm 1950*800*2305mm
    Tested Opening Safety Height ≤ 200 mm
    Inflow Velocity 0.53±0.025 m/s
    Max Opening 400mm
    Downflow Velocity 0.33±0.025 m/s
    HEPA Filter Two, 99.999% efficient at 0.3 um. Filter life indicator.
    Front Window Motorized. Two-layer laminated toughened glass  ≥ 5mm. Anti UV.
    Noise EN12469 ≤ 58 dB / NSF49 ≤ 61 dB
    UV Lamp 30W*1 18W* 1 40W* 1 40W*2 40W* 1
    UV timer, UV life indicator, emission of 253.7 nanometers

    for most efficient decontamination.
    Fluorescent Lamp 21W*2 21W*2 28W*2 40W*2 40W*2
    Illumination ≥1000Lux
    Consumption 760W 1060W 1300W 1350W 1700W
    Waterproof Sockets Two, total load of two sockets: 500W
    Display LCD display: exhaust filter and downflow filter pressure,

    filter and UV lamp working time, inflow and downflow velocity, filter life,

    humidity and temperature, system working time etc.
    Control System Microprocessor
    Airflow System 70% air recirculation, 30% air exhaust
    Visual and audio alarm Filter replacement, window over height, abnormal air flow velocity.
    Material



    		 Work Zone: 304 stainless steel
    Main Body: Cold-rolled steel with anti-bacteria powder coating.
    Work Surface Height 750mm caster Universal caster with

    brake and leveling feet.
    Power Supply 110/220V±10%, 60/50Hz
    Standard Accessory Fluorescent lamp,UV lamp*2 ,Base stand, Remote control, Foot switch,

    Drain valve, Waterproof sockets*2
    Optional Accessory Water and gas tap
    Gross Weight 255kg 305kg 350kg 390kg 420kg
    Package Size

    (W*D*H)mm

    		 1250× 1050× 1870 1450*1050*1870 1640*1040*1860 2010*1050*1960 2090*1050*1860
