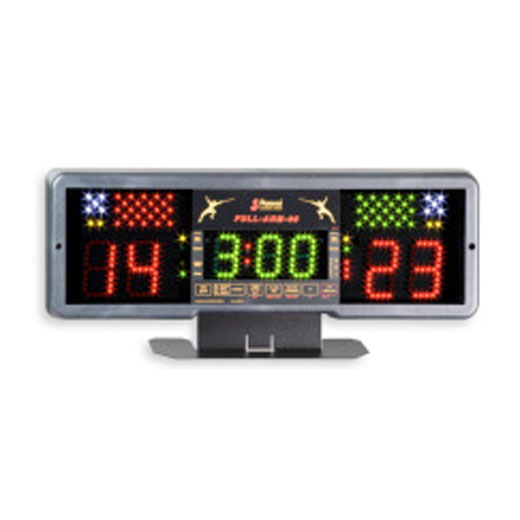

Favero Electronic Scoring Device

Product Code: DT121-1. Category: .

  • Description

    F.I.E. Approved

    • CONTROL FOR 3 WEAPONS. Manual or automatic rearmament.
    • Selection of two programmes for the sabre (with or without whip-over).
    • Selection of a programme useful for epée teaching, which signals the hits in rapid succession.
    • A special control prevents the annoying continuous noise that occurs in sabre and foil when the fencers are not connected.
    • The FULL-ARM-05 programme can be easily updated by replacing a single electronic component.
    • SCORER: height of the digits 7cm, legible up to a distance of 25-30m. Count up to 99. Increase, decrease, and zero out.
    • CHRONOMETER: height of the digits 5.2cm, legible up to a distance of 15-20m away. Start/Stop, 1 minute pause, Load start time. The color of the two lighted dots between the minutes and seconds clearly and immediately indicates the chronometer status. GREEN = counting; RED = stopped.
    • Counting the MATCHES. Signaling for fencer PRIORITY, with manual and random selection. Signaling for PENALTY CARDS. The red card automatically increases the opponent’s point score.
    • Membrane keyboard: sturdy and reliable (5 million contacts per key).
    • Sound volume adjustable to three levels. The various events are indicated by different sound signals: hit, end of time, abnormalities.
    • The apparatus uses two DATA-LINE sockets to connect LIGHTS REPEATERS (Art.894). The Data-Line sockets can be easily increased to four by using an inexpensive accessory connector (Art.880). For greater safety, the Data-Line sockets are insulated electrically through the use of opt couplers.
    • The cables connecting to the repeaters, ordinarily provided with the latter, are regular telephone cables that can be easily extended to 100m, if necessary.
    • ALL the visual displays on the FULL-ARM-05, including the lights signaling hits (one red, one green, and two white lights) consist of high-efficiency LED’s (average life: 100,000 hours). Therefore, the problems associated with short life and replacement of normal filament lamps is eliminated.
    • Power supply: 12Vac or 12Vdc. THE ELECTRICAL POWER USED IS MINIMAL, thanks to exclusive use of high-efficiency LED’s. The maximum total power used, with two colored lights switched on, is only 4 watts. The Full-Arm-05 can also be supplied by a small rechargeable lead-acid battery 12V, 6-7Ah. In this case, it lasts for about 30 hours before requiring recharging. We can supply both the battery (Art.828) and the battery charger (Art.169).
    • Low battery indication.
    • The case, made of shock-proof plastic (the front part is in polycarbonate), is resistant even to violent accidental blows with the weapons.
    • Dimensions: wiWSh 56cm, height 23.5cm, depth 8.5cm.
