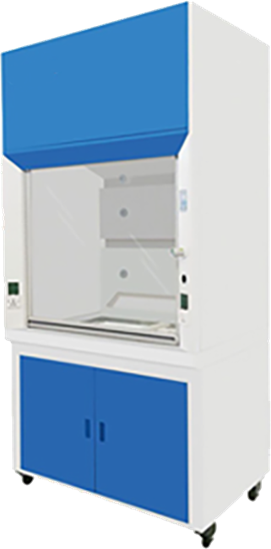

Fume Hood 1200

1200-15000

Fume Hood is used to protect lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion. By installing proper filter, it can also protect environment.

Product Code: DT1200E. Category: .

  • Description

    External Size

    (W*D*H)

    		 1200*800*2515mm
    Internal Size

    (W*D*H)

    		 990*600*870mm
    Work Surface

    Height

    		 900mm
    Max Opening 750mm
    Air Velocity 0.3~0.8m/s
    System Exhaust

    Volume

    		 710 m3/h
    Noise ≤68dB
    Exhaust Duct PVC, Standard length: 4 meters
    φ300mm
    Pipe Strap 2 pcs
    LED Lamp 12W *1
    Blower Built-inPP centrifugal blower;
    Front Window Manual, 5mm toughened glass, height adjustable
    Power Supply 220V±10%, 60/50Hz;110V±10%, 60Hz
    Consumption 400 W








    Material

    		 Exterior 1.0mm cold-rolled steel with bacteria power coating.
    Interior High grade melamine board with good acid and alkali resistance function
    Work

    table

    		 Chemical resistant phenolic resin




    Standard

    Accessory



    		 Water tap, water sink, LED lamp, Total load of 2 waterproof sockets: 500W, Built-in PP blower, 4 meters PVC exhaust duct, pipe strap*2
    Optional

    Accessory



    Gas tap
    Weight (Net/Gross) 275kg/300kg
    Package MainBody

    1340*940*1850mm
    BaseCabinet

    1340*940*1050mm

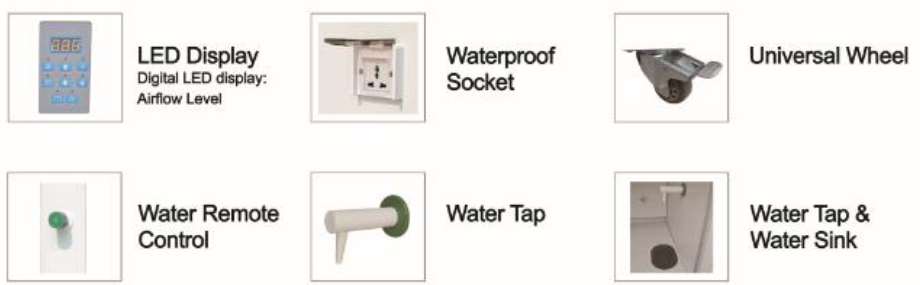

    ADVANTAGE

    1. Adjustable air speed: 9 levels.
    2. Microprocessor control system, LED display.
    3. Resistant to moderate acid and alkali.
    4. With memory function in the case of power-failure.
    5. Manual front glass window, height adjustable.

    6.Built-in PP centrifugal blower; low noise, easy installation
