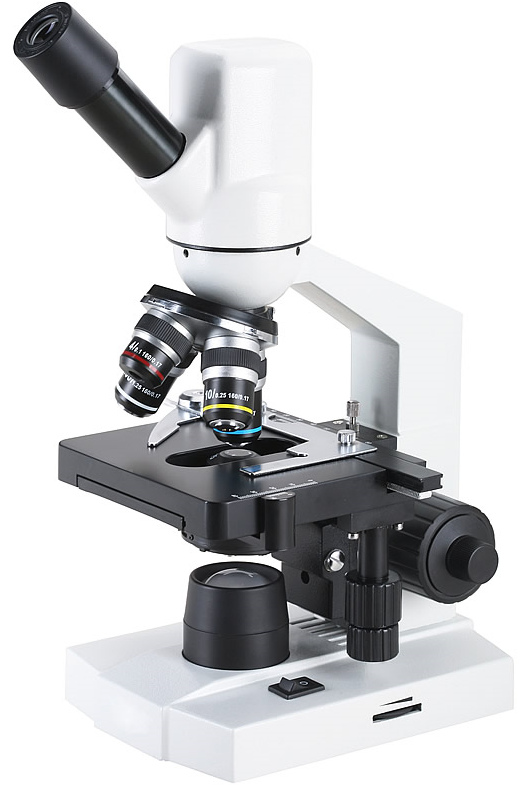

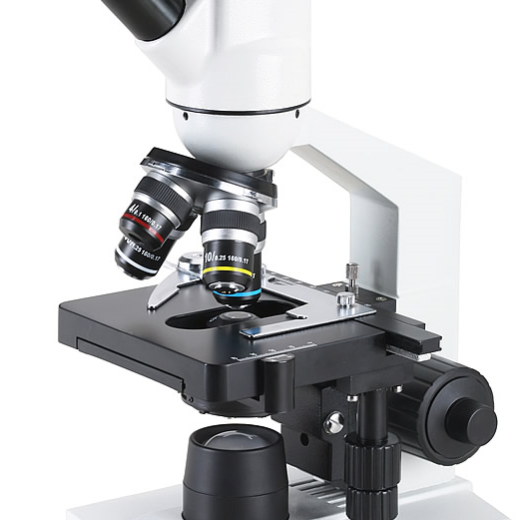

USB Digital Microscope (Monocular)

Digital microscope , Eyepiece × 10 wide field ,
Objectives : Achromatic ( 4N.A ,10N.A, 40N.A (spring)100 N.A)
that Built-in the camera,microscope powered by USB 2.0,
software(Arabic and English)
 included RJ-45-Network Connection,the operating net system should cover more than 8 microscopes,
RCA-Composite Video,
Equipped with adjustable LED illuminator
(triple charger socket,Uk stander ),
rechargeable microscope &
supplied with its software.
Three-years warranty
Opend software included
USB / HDMI wire connection provided
Product Code: DT-1006. Category: .

  • Description

    For user manual please click UserManual





    USB Digital Biological Microscope A
    Head Monocular head, Inclined at 45°, 360°rotatable
    Eyepiece WF10x/18
    Objective Achromatic 4x,
    Achromatic 10x
    Achromatic 40x
    Achromatic 100x
    Nosepiece Quadruple Nosepiece
    Stage Double Layers Mechanical Stage115×125mm/70×20mm
    Condenser Abbe N.A.=1.25 with iris diaphragm(Φ2-Φ28mm)and frosted filter
    Focusing Coaxial coarse and fine adjustment
    Camera System Valid Pixel 1280×1024(1.3M Pixel)
    Output Mode USB2.0
    Operation System WINDOWS 2000/XP/VISTA 32 Bit or 64 Bit
    Software Scopelmage 9.
    Illumination 1W Powerful LED Illumination

    brightness adjustable
